HLLY 20 W FM Radio Station Transmitter
Include Portable GP Antenna
In Stock Now and We will Ship in several days after payment!!
Parameters
1. Power supply: DC12-13.8V Recommend 12V
2. Maximum operating current: 2A
3. Ambient temperature: -5~40℃
4. Frequency Range: 88MHz~108MHz
5. Frequency Step : 100KHz
6. Frequency Stabilize Style: PLL
7. Pre-emphasize : Default 50µs Optional 75µs
8. Output power: 20W
9. Output resistance: 50 OHM
10. Modulate Style: WFM
11. Maximum Deviation: ±75KHz
12. Parasitic AM: 〈0.2%
13. Audio Frequency Response: 50Hz~15000Hz
14. Audio input level: -15dbV（Max: -30dbV）
15. Input Jack: 3.5mm headphone connector and RCA jack
16. MIC input Level: -15dbV（Max: -45dbV）
17. MIC Jack： 3.5mm headphone connector
18. Stereo Seperation： Better than 30db
19. S/N： Better than 50db
20. Antenna Connector： BNC type
21. Dimension： 150x160x50mm
22. Weight： 0.7Kg
New Features:

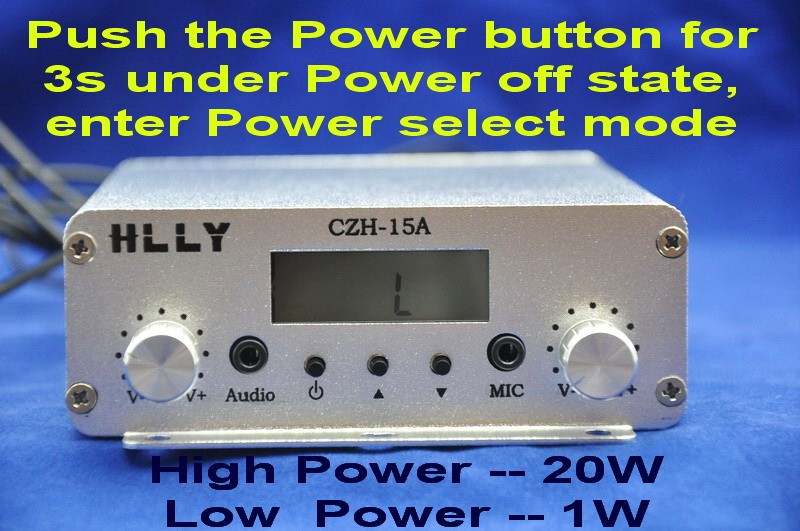

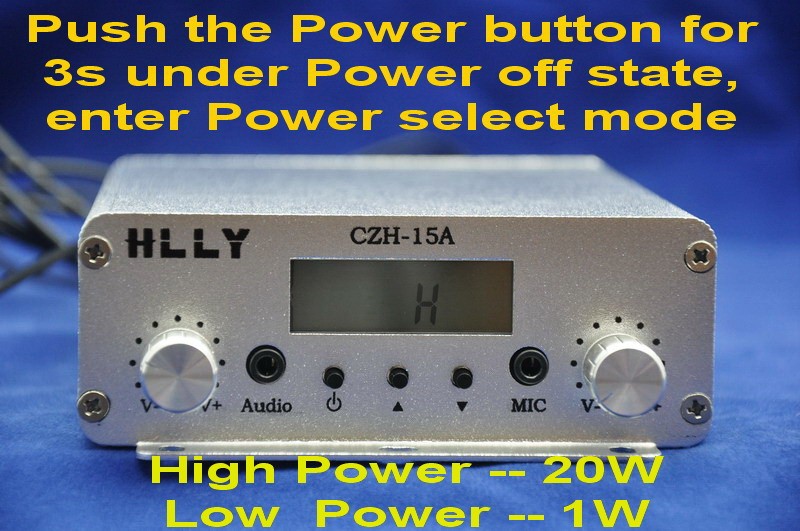

Two power mode: Full Power (20W) / Low power(1W)

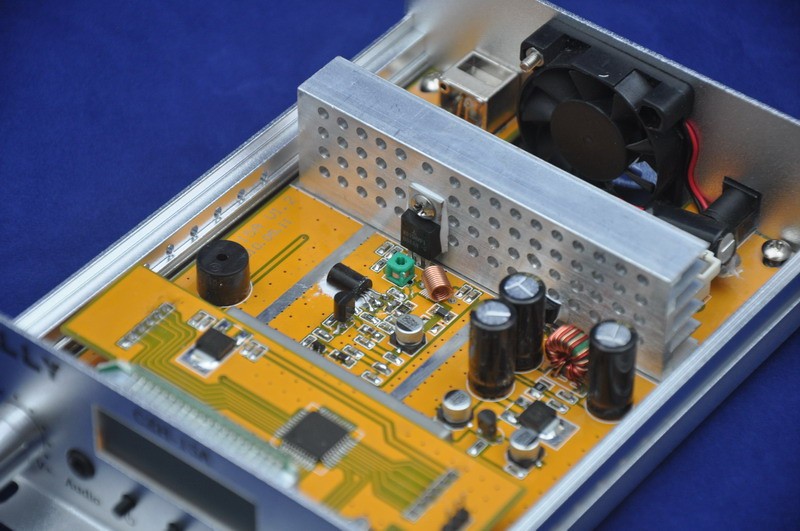

Better inside Structure:

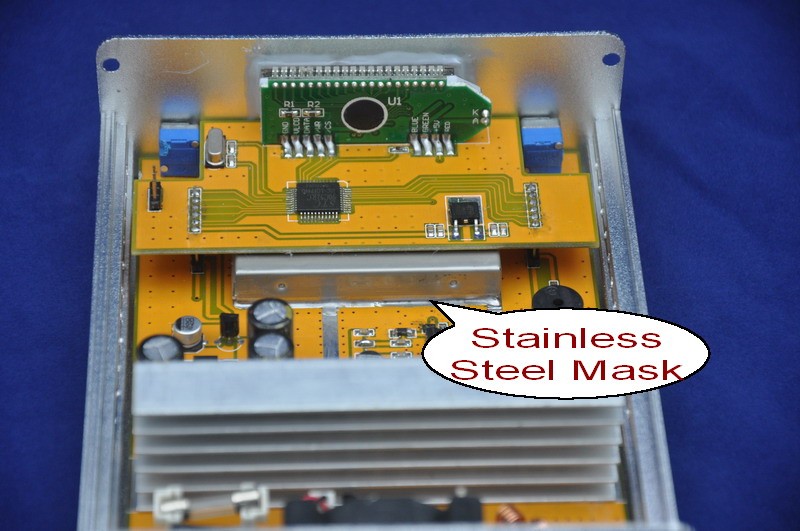

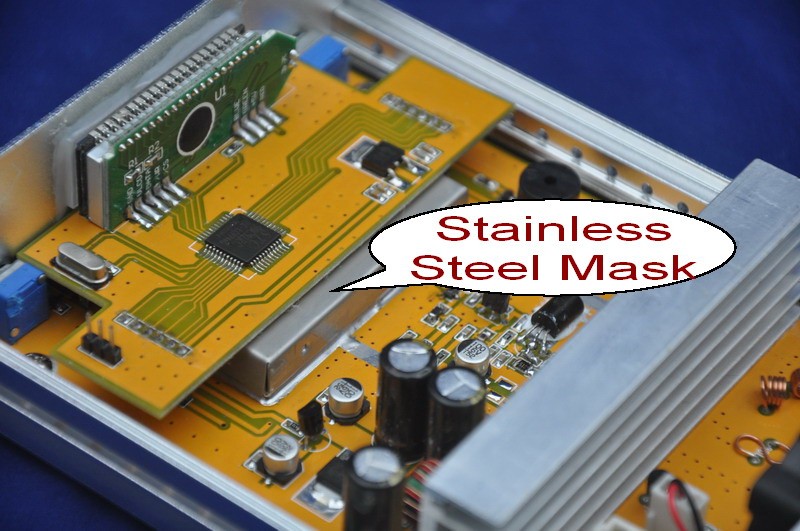

1. Stainless Steel Mask for Module
2. Better RF Amplifier layout
3. Better cooler headsink
4. Temperature Protect Function
Build your own FM stereo radio station!
If you have any questions, please feel free to email us:
hllyaudio@gmail.com
ATTENTION Never power on the transmitter when the antenna is not connected!!!
Package Content :
Payment:
Paypal or international bank wire transfer or U.S. Bank transfer
Shipping
DHL/TNT/EMS shipping 4-6 business days
