HLLY 5 W FM Radio Station Transmitter
USD 220 Get it NOW
In Stock Now and We will Ship in several days after payment!!
Parameters
1. Power supply: DC12-13.8V Recommend 12V
2. Maximum operating current: 2A
3. Ambient temperature: -5~40℃
4. Frequency Range: 87MHz~108MHz
5. Frequency Step : 100KHz
6. Frequency Stabilize Style: PLL
7. Pre-emphasize : Default 50µs Optional 75µs
8. Output power: 5W
9. Output resistance: 50 OHM
10. Modulate Style: WFM
11. Maximum Deviation: ±75KHz
12. Parasitic AM: 〈0.2%
13. Audio Frequency Response: 50Hz~15000Hz
14. Audio input level: -15dbV（Max: -30dbV）

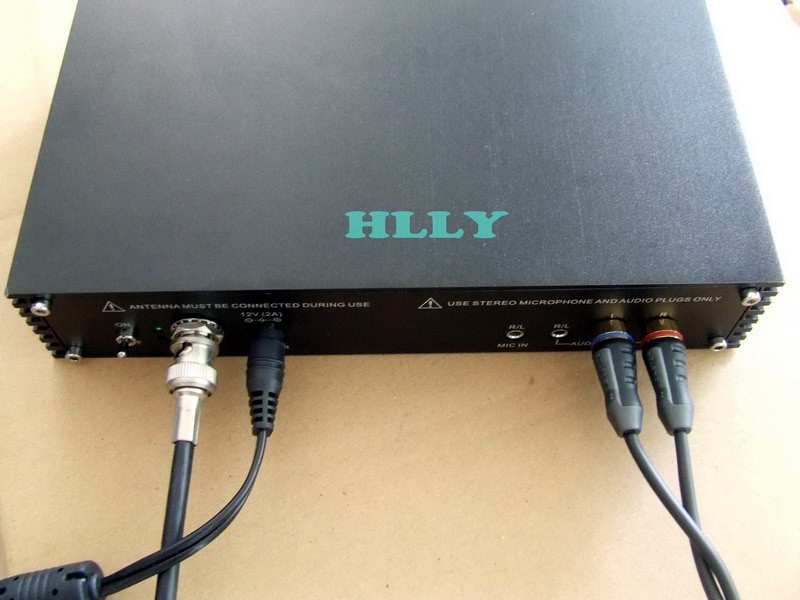

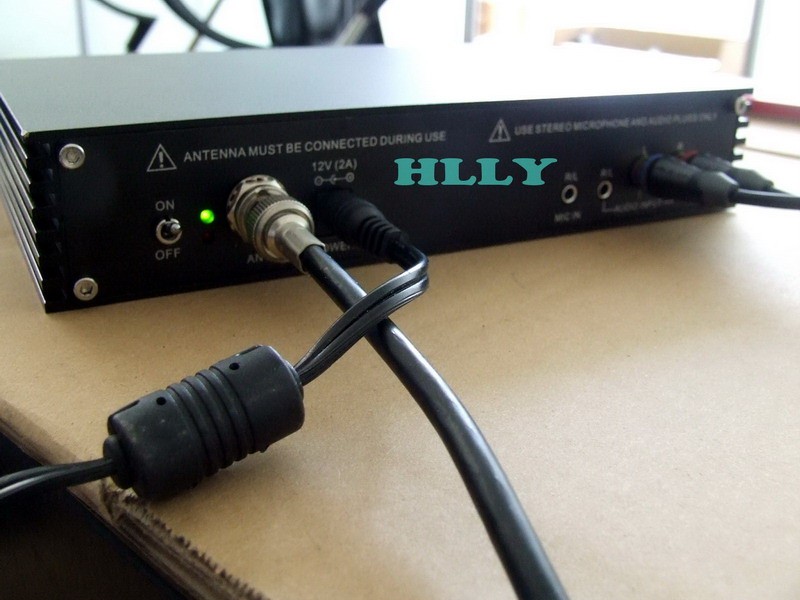

15. Input Jack: 3.5mm headphone connector and RCA jack
16. MIC input Level: -15dbV（Max: -45dbV）
17. MIC Jack： 3.5mm headphone connector
18. Stereo Seperation： Better than 30db
19. S/N： Better than 50db
20. Antenna Connector： BNC type
21. Dimension： 210x120x38mm
22. Weight： 0.8Kg
Build your own FM stereo radio station!
If you have any questions, please feel free to email us:
hllyaudio@gmail.com *With a good antenna the FM transmitter will broadcast better. The transmission range depends on many factors. The true distance is based on the sensitivity of the receiver, antenna of the receiver, building and other obstructions which are between the transmitter and receiver. The distance will much more in open countryside.
ATTENTION
Never power on the transmitter when the antenna is not connected!!!
Top Grade power supply for this transmitter!
Payment:
Paypal only
Shipping
DHL/TNT/EMS shipping 4-6 business days
